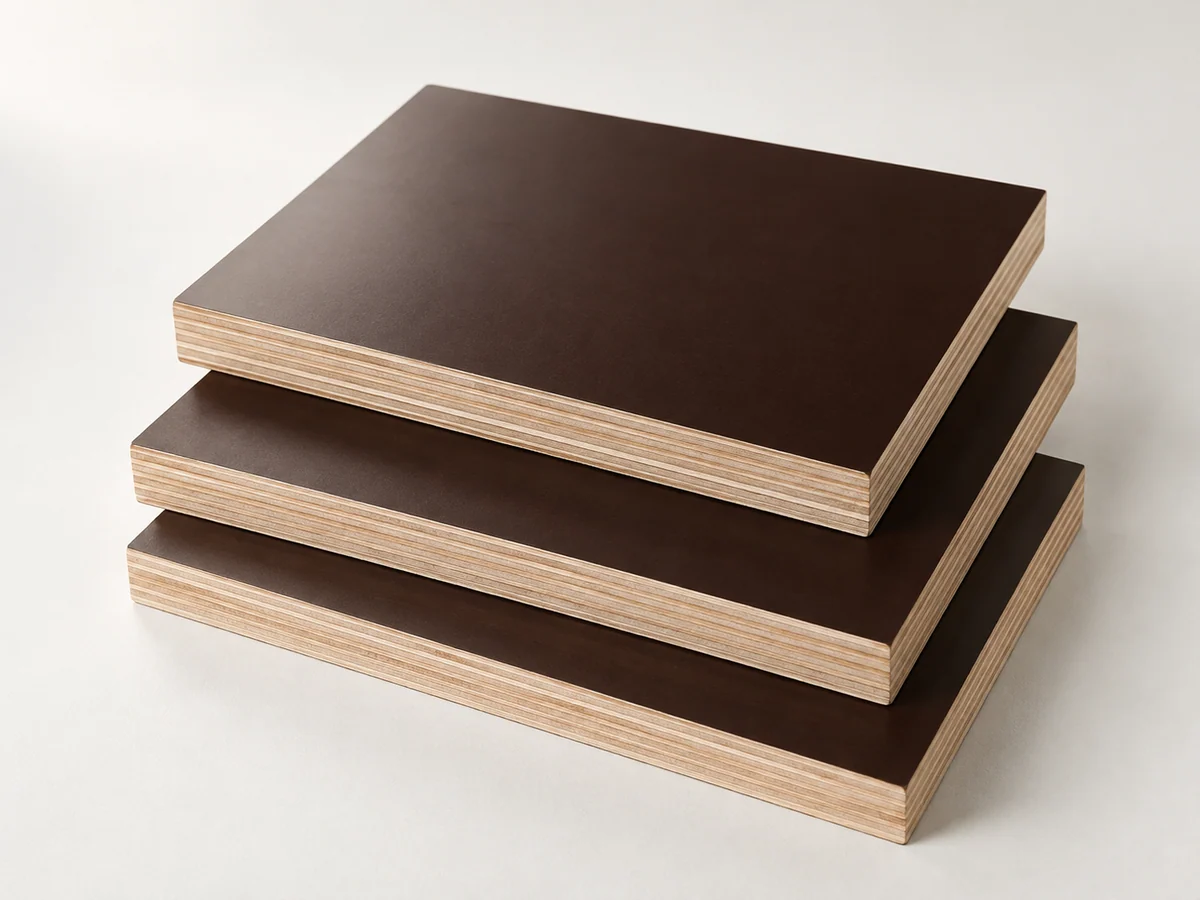

Film-faced plywood
Film-overlay plywood for concrete formwork and other defined surface-duty applications.
All products
Material & application.
Plywood core with film overlay and specified edge treatment.
Concrete formwork; other uses must be specified with their surface and structural requirements.
No reuse-cycle count, load capacity or slip resistance is guaranteed by the film-faced description.
Specification options.
| Parameter | Enquiry specification |
|---|---|
| Nominal sheet size | 1220 × 2440 mm; other sizes by enquiry |
| Nominal thickness | 12 / 15 / 18 / 21 mm |
| Surface | Smooth film; texture only when separately specified |
| Standard reference | EN 636 / EN 314-2; EN 13986 where applicable |
| Specification focus | Core construction, overlay, edge sealing and application loading. |
European standard references.
| Property | Reference | Specification basis |
|---|---|---|
| Core and bonding | EN 636 / EN 314-2 | Required service and bond class |
| Overlay | Order specification | Film type, face/reverse and coating mass |
| Structural properties | Product-specific declared data | Direction, thickness and support arrangement |
| Dimensions | EN 315 | Nominal thickness and tolerances |
| Edges | Order specification | Sealing system and maintenance requirements |
